current position : Index >>Products >>Tub

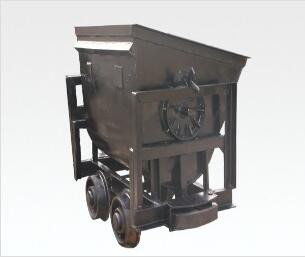

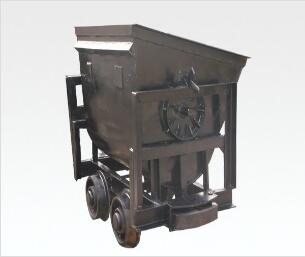

flip tramcar

Categories: Tub
Manufacturer: ZIBO GOD ROCK MINING MACHINERY
price: Inquiry
Email:zbsy@rockloaders.com
hit count：
WhatsApp: Yu Jinhai

Product Details

Model	Volume M3	Loading weight Kg	Track Guage G	Outline dimension			Wheelbase C	Wheel Diameter D	Traction height h	Tractive effort kN kgf	Unloading angle 0	Wing plate height mm	Dead-weight（≤）kg
			Track Guage G	L	B	H	Wheelbase C	Wheel Diameter D	Traction height h
			mm
Main technical parameters
0.5	0.5	1200	600	1500	850	1050	500	300	320	6000	40		590
0.55	0.55	1320	600	1600	1100	1180	600	300	280	6000	40		610
0.7	0.7	1680	600	1650	980	1200	600	300	320	6000	40		724
0.7	0.7	1680	762	1650	980	1200	600	300	320	6000	40		735
0.75	0.75	1800	600	1876	950	1280	650	300	296	6000	40		750
1.1	1.1	2640	600	2460	1220	1250	900	300	320	6000	40		1050
1.1	1.1	2640	762	2460	1360	1225	750	300	268	6000	40		1100

0.7	0.7	1680	600	1650	980	1050	600	300	320	6000	40		750
1.2	1.2	2880	600	1900	1050	1200	600	300	320	6000	40		1000
2	2	4800	600	3000	1250	1300	1000	400	320	6000	42		1830
2	2	4800	762	3000	1250	1300	1000	400	320	6000	42		1880
4	4	9600	762	3900	1400	1650	1300	450	430	6000	12		3230
4	4	9600	900	3900	1400	1650	1300	450	430	6000	12		3300

4	4	9600	762	3900	1600	1600	1300	450	600	6000	50		4320
6	6	14400	762	5400	1750	1650	2500	400	730	6000	50		6320
6	6	14400	900	5400	1750	1650	800	400	730	6000	50		6380

4	4	9600	762	3652	1450	1700	1300	450	430	600		900	3785
